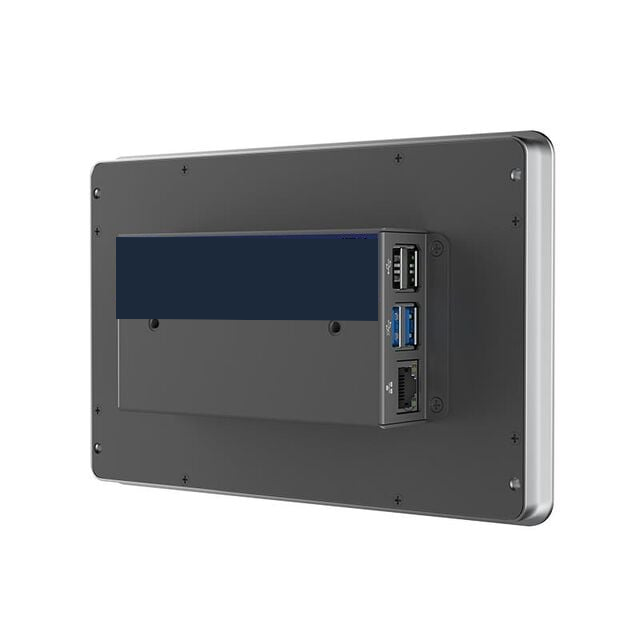

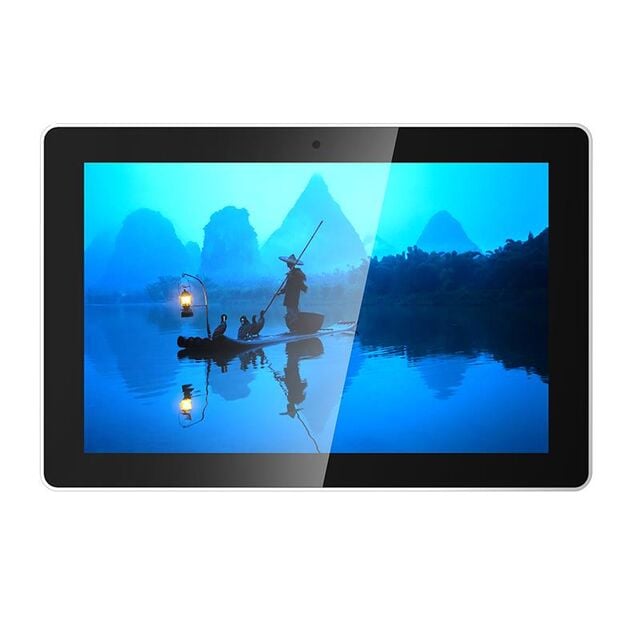

10.1" HMI Display

Industrial Electronics

EdenHMI-10

HTML5 Touchscreen HMI

A plug and play HMI designed for building automation contractors and system installers. Plug it in, configure your network settings, and start monitoring your systems immediately.

USD
1-Year Warranty
Power Supply Included

Key Features

10.1" LCD Touchscreen

High-resolution 1280×800 display with 10-point capacitive touch and 350cd/m² brightness for clear visibility

Plug and Play Ethernet HMI

Connect via Gigabit Ethernet and get started immediately - no complex setup required

Built-In Chromium Browser

Full HTML5 support for modern web-based building automation interfaces and dashboards

Network Configuration Tool

Embedded tool for quick and easy network setup - configure IP settings without external software

Power Supply Included

5VDC USB-C power supply included - everything you need to get started right out of the box

Industrial Design

Fanless aluminum CNC case with -20°C to +60°C operating range for reliable performance

Technical Specifications

1 Display Specifications

Screen Size
10.1 inches
Resolution
1280 × 800 pixels
Brightness
350 cd/m²
Touch Technology
10-point capacitive
Display Type
TFT LCD

2 Processing & Memory

Processor
BCM2712 Quad-core
CPU Speed
2.4 GHz Arm Cortex-A76
RAM
4GB LPDDR4
Storage
32GB SD card
Cooling
Fanless design

3 Ethernet Connectivity

Interface
RJ45 Ethernet Port
Speed
10/100/1000 Mbps
Standards
IEEE 802.3
Configuration
Static IP
Cable Type
Cat5e/Cat6 (not included)

4 Physical & Environmental

Dimensions (W×D×H)
258 × 172 × 38 mm
Case Material
Aluminum CNC + Sheet metal
Operating Temp
-20°C to +60°C
Power Input
5VDC via USB-C
Max Power
25W

Documentation

Online Documentation User Manual Datasheet

Frequently Asked Questions

Common questions about the EdenHMI

What building automation systems is this compatible with?
The EdenHMI supports any HTML5-based building automation system. It's compatible with popular platforms like Tridium Niagara, CODESYS Web Visu, Node-RED, Apache-based systems, and other web-based HVAC/BAS control systems. If your BAS has an HTML5 interface, it will work with this HMI.
How difficult is the installation process?
Installation is straightforward. Simply mount the unit using the included hardware, connect power via the included USB-C adapter, connect Ethernet, and use the built-in network configuration tool to set your IP address. The interface is intuitive and designed for field technicians. Full installation manual is included with step-by-step procedures and mounting instructions.
What warranty coverage is included?
Every EdenHMI includes a 1-year manufacturer warranty covering defects in materials and workmanship under normal use conditions. The warranty covers the display, touchscreen, electronics, and housing.
Can I use this in harsh industrial environments?
Yes! The EdenHMI features an industrial-grade aluminum CNC case with fanless cooling system and a wide operating temperature range (-20°C to +60°C). It's designed for mechanical rooms, rooftop installations (with appropriate enclosures), and other demanding commercial building automation locations where reliability is critical.
Are other screen sizes available?
The EdenHMI series is based on the EDAtec HMI3010 platform and can be configured in multiple sizes including 7.0" (1024×600) and 15.6" displays. Use the size selector at the top of this page to see specifications and pricing for different sizes. Quantity discounts may be available for contractors deploying multiple units - contact us for bulk pricing.
How do I configure network settings?
The EdenHMI includes an embedded network configuration tool accessible directly from the touchscreen. You can configure network settings without connecting a laptop or external configuration device. The interface is intuitive and designed for field technicians who need to configure devices on-site quickly.
What's included in the box?
Each EdenHMI package includes: the HMI touchscreen unit, 5VDC USB-C power supply, mounting hardware, quick start guide, and warranty documentation. Ethernet cable is not included (standard Cat5e/Cat6 cable required). Everything you need to deploy immediately is in the box.
